The EL84 Gallery
6BQ5 E84L
7189 |
|
|
|
|
|
|
|
|
|
|
|
|
Telefunken tubes |
|
Siemens tubes |
|
|
|
|
|
|
|
 |
Telefunken EL84
Identified by:
- round (one
piece) plate
- <> between the pins
Comment:
Outstanding
tube. Most common Telefunken EL84 type. |
|
 |
Siemens EL84 rX1
code
Identified by:
- D-Getter
- early ≠ code (made in
Munic)
Comment:
Very rare tube.
1950s. |
|
|
|
|
|
|
|
 |
Telefunken EL84
Identified by:
- same as
above but having "cross" construction beneath getter ring
Comment:
Outstanding
tube. Very rare. |
|
 |
rX1 ≠XX code
Identified by:
- ribbed
plate with 3 side slots
- Telefunken style getter
ring
Comment:
1956-1957 ???.
Samples found with
rX1 ≠6X and rX1 ≠7X codes. |
|
|
|
|
|
|
|
 |
Telefunken EL84
Identified by:
- same as
above but having "box" construction beneath getter ring
Comment:
Outstanding
tube. Very rare. |
|
 |
rX3 ≠XX code (also
kM1 / kM2)
Identified by:
- ribbed
plate with 3 side slots
- 11.5mm getter ring
Comment:
1958-1961.
Samples found with
kM1≠8X / rX1≠9X to ≠1X codes. |
|
|
|
|
|
|
|
 |
Telefunken EL84
Identified by:
- same as
above but having "M" construction (click
here for detail picture) beneath getter ring
Comment:
Outstanding
tube. Very rare. |
|
 |
rX3 ≠XX code (also
kM5)
Identified by:
- ribbed
plate with 3 side slots
- 14mm getter ring
Comment:
1962-1968 ???.
Samples found with
rX1 ≠2X to kM5 ≠8X codes. |
|
|
|
|
|
|
|
|
|
|
 |

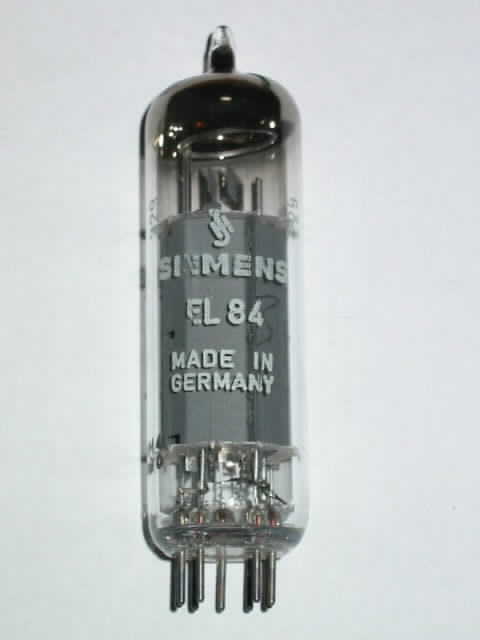

Siemens E84L
Identified by:
-
similar to kM or later rX
tubes
-
UØX ≠XX code
Comment:
Rare tube, but
where`s the difference??? |
|
|
|
|
|
|
|
|
|
|
 |
Siemens EL84 foreign
made
Identified by:
-
two round holes in plate
-
no ≠ code
Comment:
The
fake. These tubes are not from Siemens production. Tungsram !!! |
|

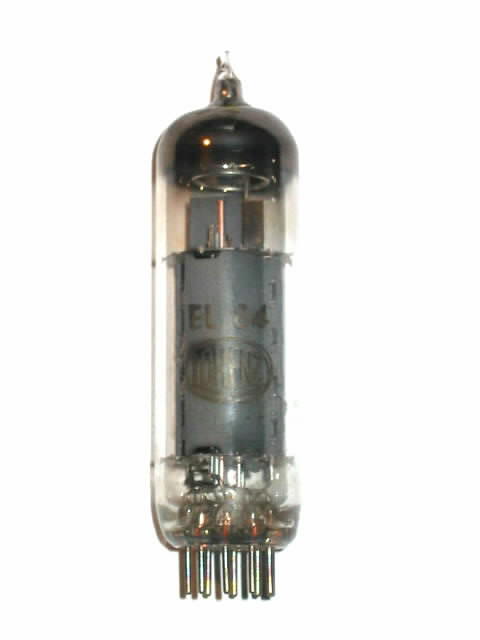

Lorenz tubes |
|
|
|
|
|
|
|
|
|
|
 |
Lorenz EL84
Identified by:
-
D-getter (near ring)
- smooth plate, with one
slot
Comment:
Very rare and nice
tube. |
|
 |
Lorenz EL84
Identified by:
-
D-Getter, declined mounted
- plate with 2 large
opposite
slots
Comment:
Very rare and nice
tube. |
|
|
|
|
|
- |
|
 |
Lorenz EL84
Identified by:
-
D-getter (near ring)
- stapled (4 holes) plates
Comment:
Very rare and nice
tube. |
|
 |
Lorenz EL84
Identified by:
-
ring getter with L-getter arm
- smooth, welded looking plate
with three
slots
Comment:
Very rare and nice
tube. |
|
|
|
|
|
|
|
 |
Lorenz EL84
Identified by:
-
ring getter with short getter arm
- smooth plate, with one
slot
Comment:
Very rare and nice
tube. |
|
 |
Lorenz EL84
Identified by:
-
ring getter with long getter arm
- smooth, stapled plate with
three slots
Comment:
Very rare and nice
tube. |
|
|
|
|
|
|
|


|
|
 |
 |
 |
 |
 |
 |
