Go to Philips ECC81



The ECC81 Gallery     12AT7  E81CC  6201  ECC801S





Telefunken ECC81

Identified by:

- ring getter, closed plate

- <> between the pins

Comment:

Very common tube



Siemens & Halske ECC81 VF3 ≠

Identified by:

- plate with 1 side hole

- ring getter

Comment:

Very common type.








Telefunken ECC81

Identified by:

- ring getter, plate with side holes

- <> between the pins

Comment:

Very common tube



Siemens & Halske ECC81 ≠

Identified by:

- D-Getter

- ≠ code

Comment:

Rare. Click here for another picture.

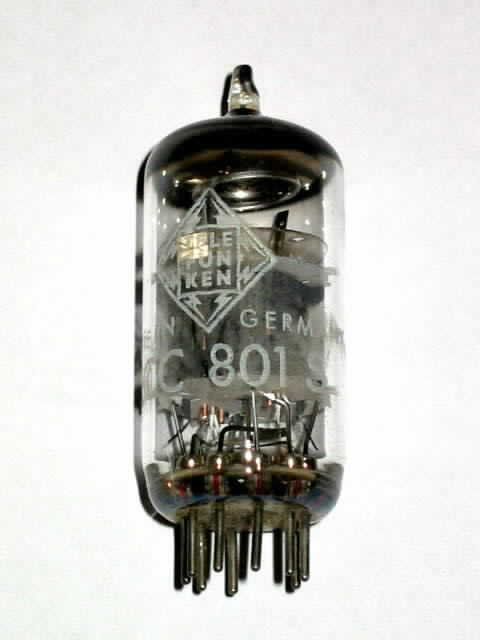

Telefunken ECC801s

Identified by:

- ring getter

- <> between the pins

Comment:

Quite rare.



Siemens & Halske E81CC

Identified by:

- triple mica   - C6 XX code

- plate with 2 side holes

Comment:

Very rare. Very nice tube.








Siemens E81CC

Identified by:

- ≠ code

- plate with 1 side hole

Comment:

Rare. Last version from Munic.








Lorenz ECC81

Identified by:

- ring getter with long getter arm

- pinched glass base

Comment:

Quite rare.



Siemens & Halske ECC801S

Identified by:

- C6 XX code - only single mica

- plate with 1 side hole

Comment:

Late German production. Similar to tube above.








Lorenz ECC801S (?????)

Identified by:

- ring getter and black plates

- slightly pinched glass base

Comment:

Rare. "Gabl" stamped. Not 100% identified



Siemens ECC81 /east Germany

Identified by:

- Plate with three side holes

- square glass

Comment:

Stay away!!
