The EL86 6CW5 Gallery |
|||||
|
The EL86 was derived from the EL84 tube, but has a lower output impedance and allows OTL applications with higher impedance speakers or headphones. At the same time the output power is a little bit lower than the EL84's, so these types can be found in 8 - 12 watts push pull amps. |
|||||
|
|||||

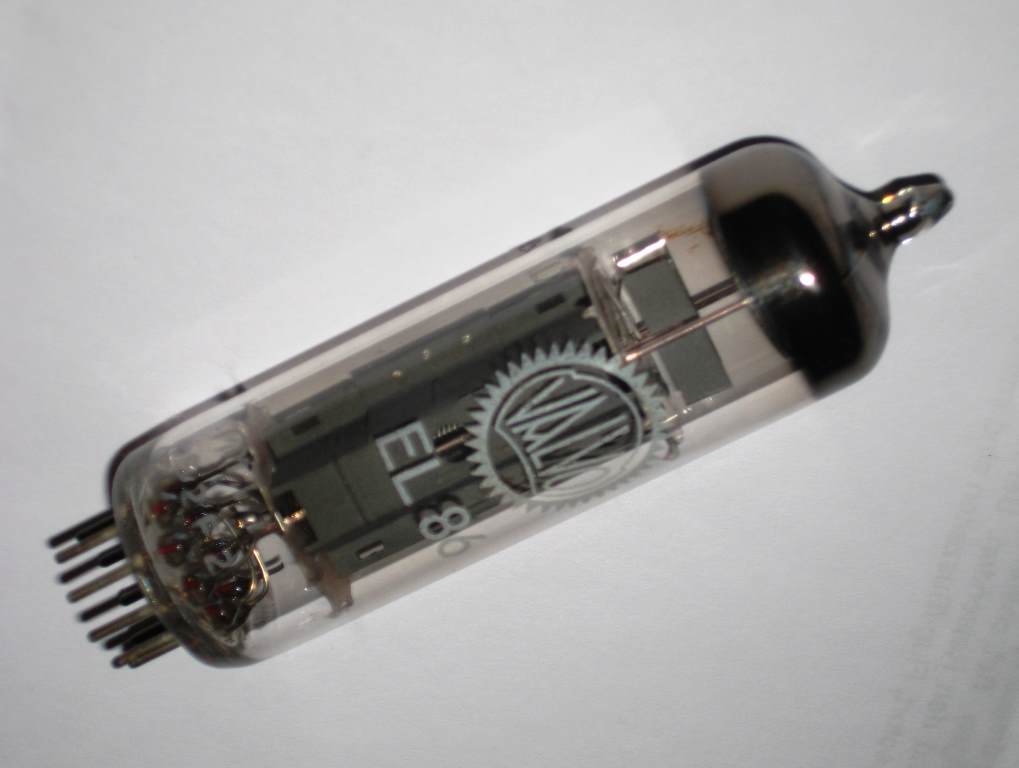

| Philips Company EL86 tubes | |||||
) |

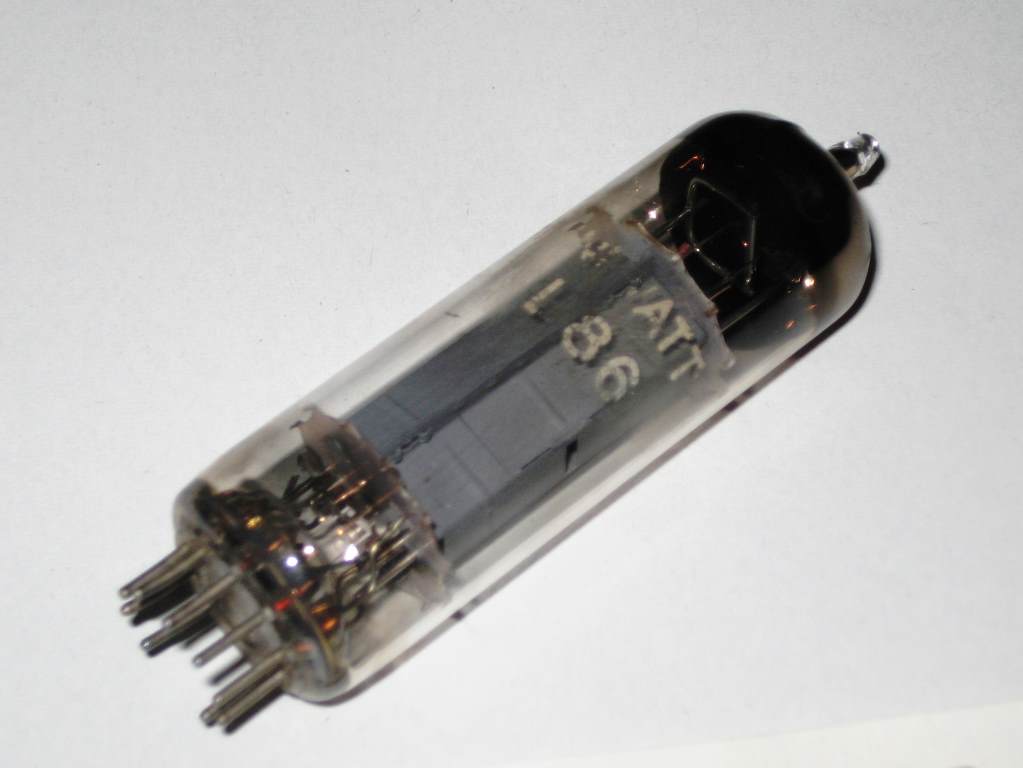

Miniwatt Code Δ8F Characteristics: - D-Getter - early type |
) |
Mullard Code MI1 B2F2 Characteristics: - ring getter - Mullard typical round hole in plate (as in EL84s from Mullard) |
||
|
|
|||||
| Telefunken EL86 Tubes | |||||
) |

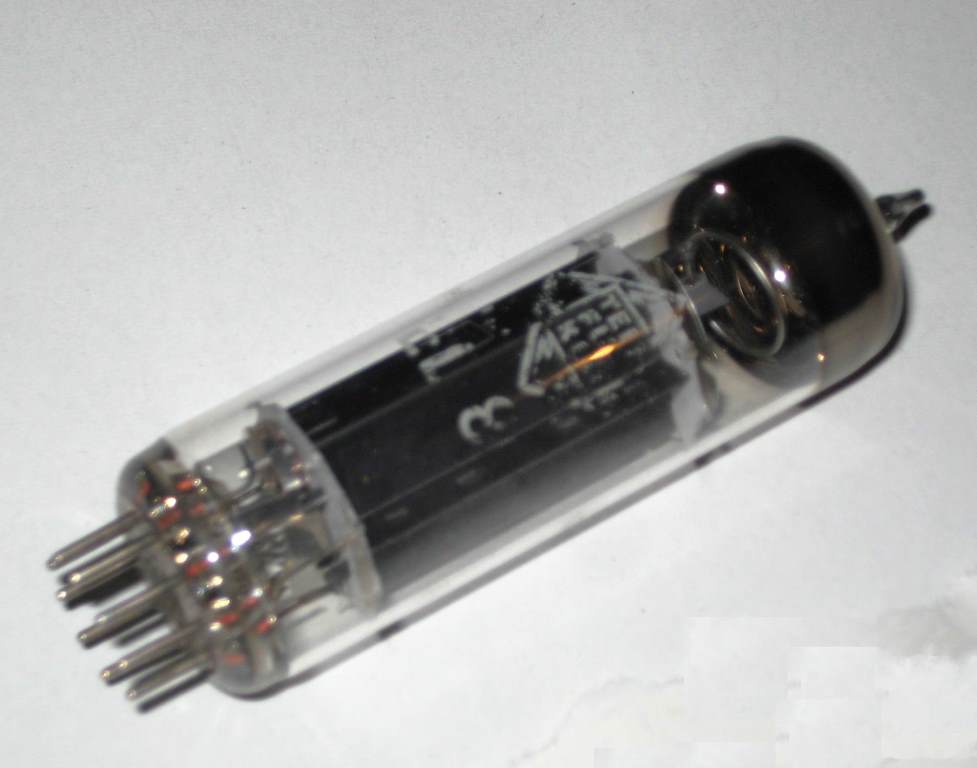

Type 1 Characteristics: - black plate - ring getter |
) |

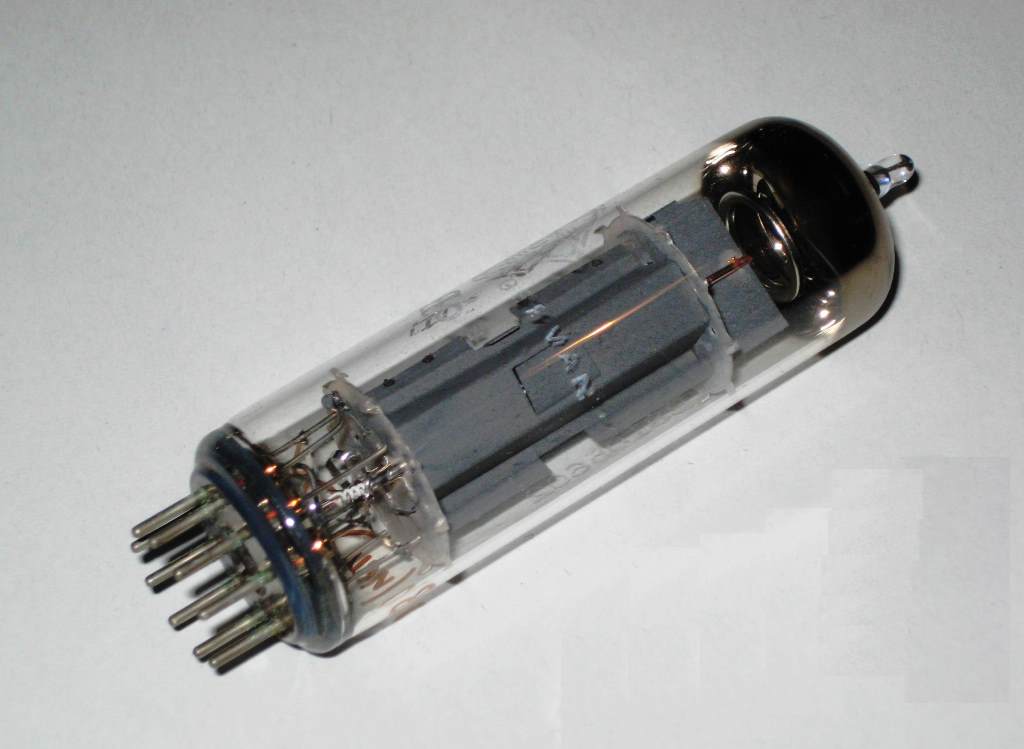

Type 2 Characteristics: - grey plate with side cuts - typical shining TFK ring getter |
||
|
|
|||||
| -
|
|||||
 |
|
|
|
|
|
