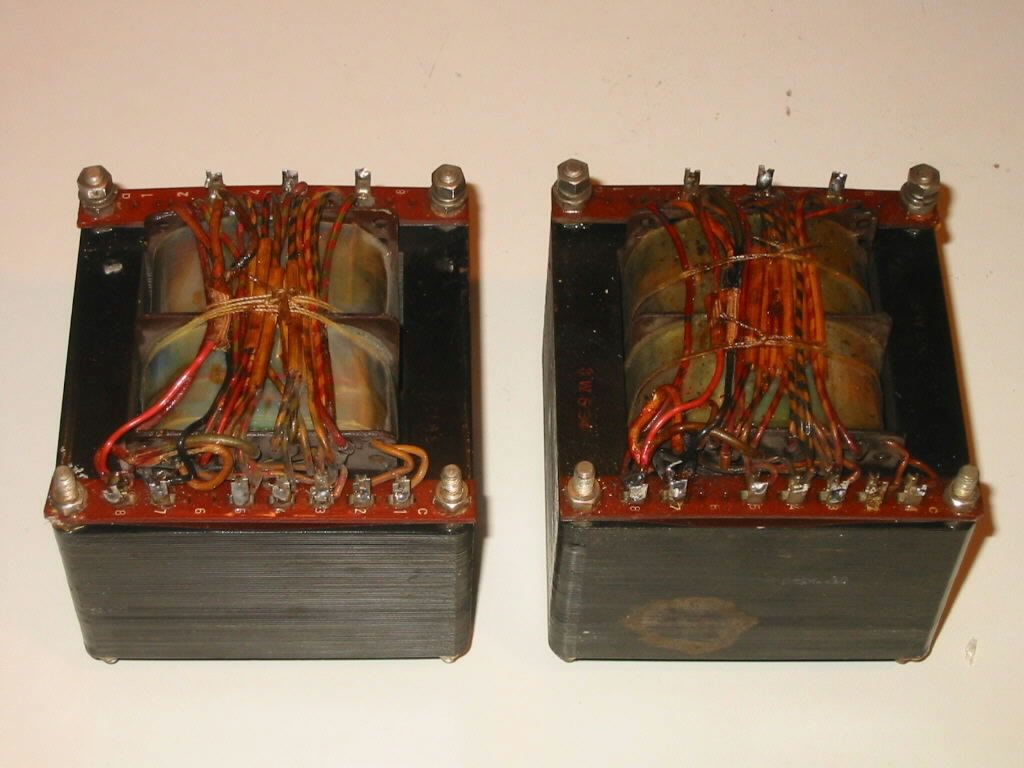

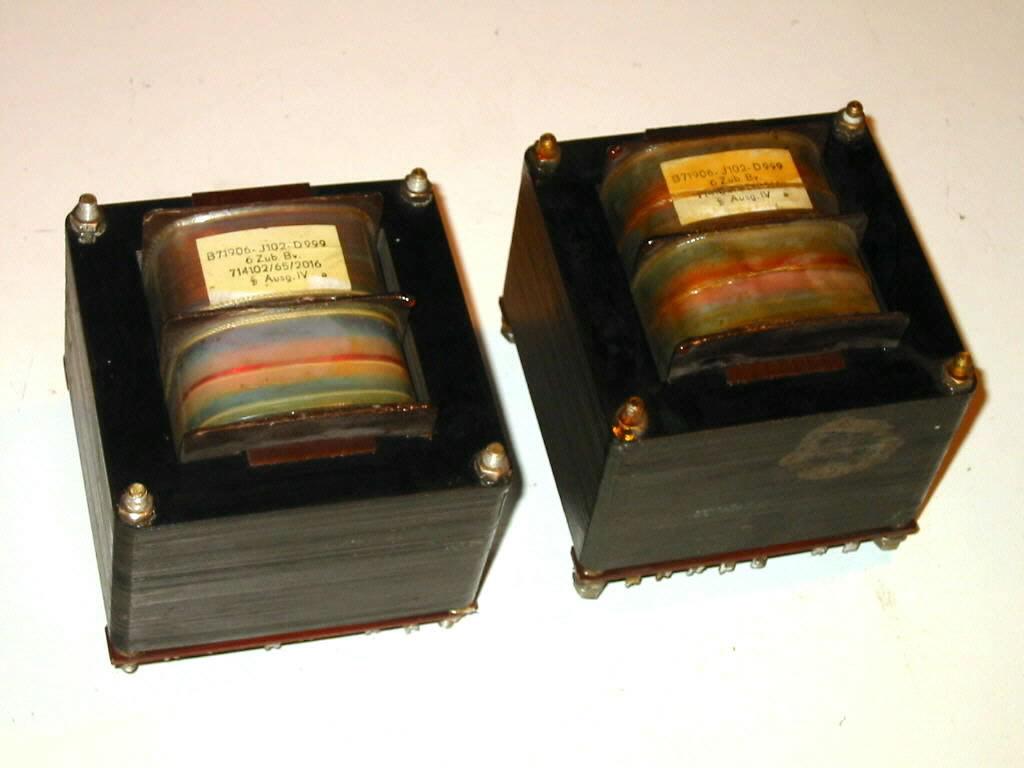

Siemens / Klangfilm 71906 Output Transformer

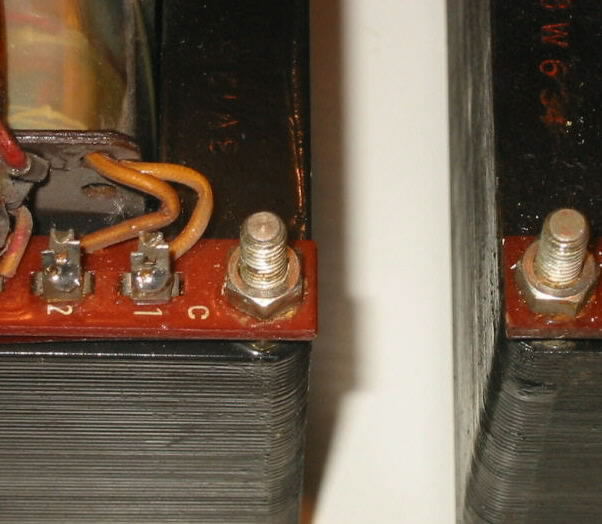

Connectors:

 c7 - c8: secondary 100 Ohms

 c1 - c2: level meter

 c3 - c4 - c5: FB#1 - FB center - FB#2

 a3 - a5 - a7: plate #1 - B+ – plate #2

  Originally the output impedance is 100 Ohms with two secondary windings in series.

  Wired in parallel the output impedance will be 6.25 Ohms and then this OPT is one of the best of all times !!!!!!!!!!!!!!
